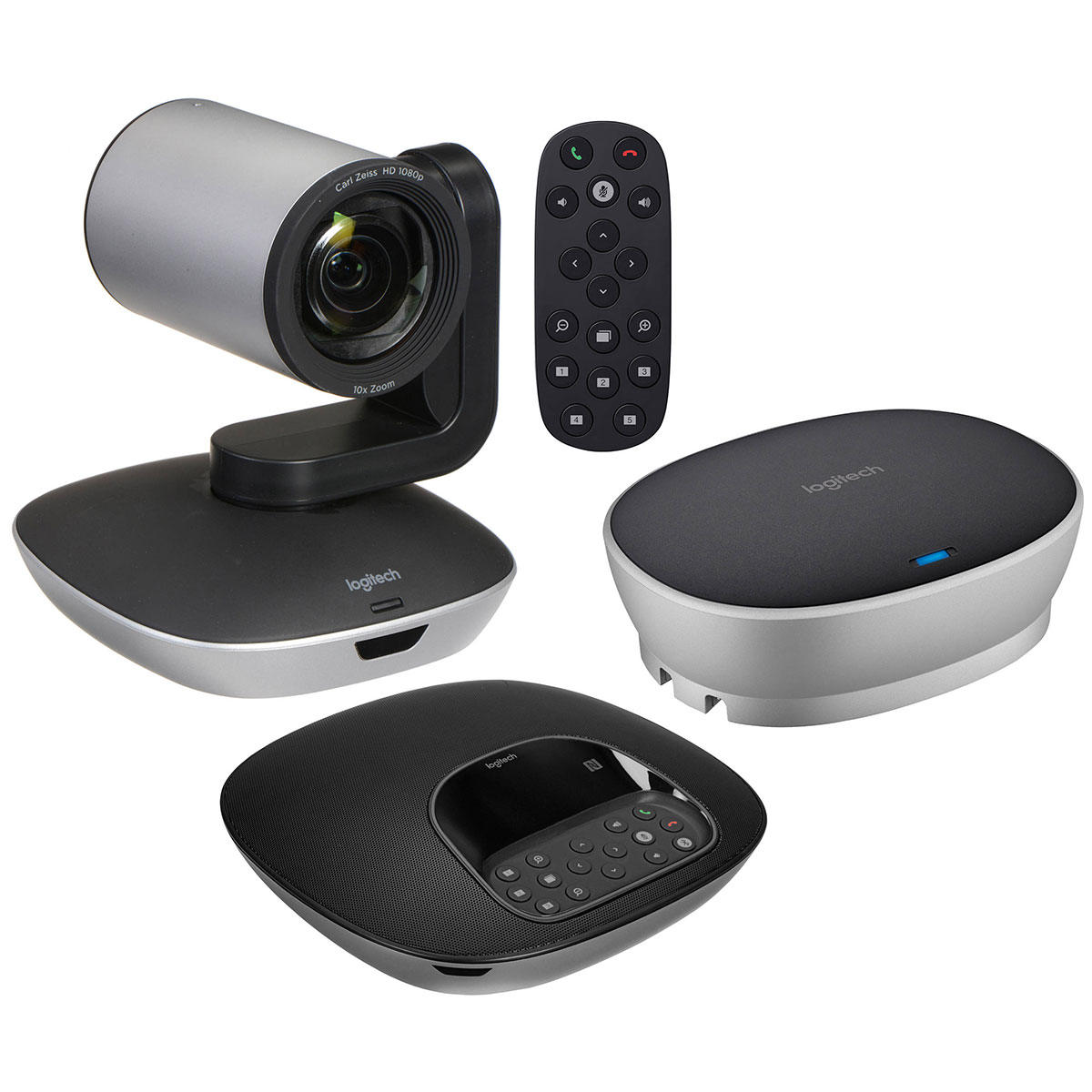

Logitech GROUP Video Conferencing System

Technical Specifications

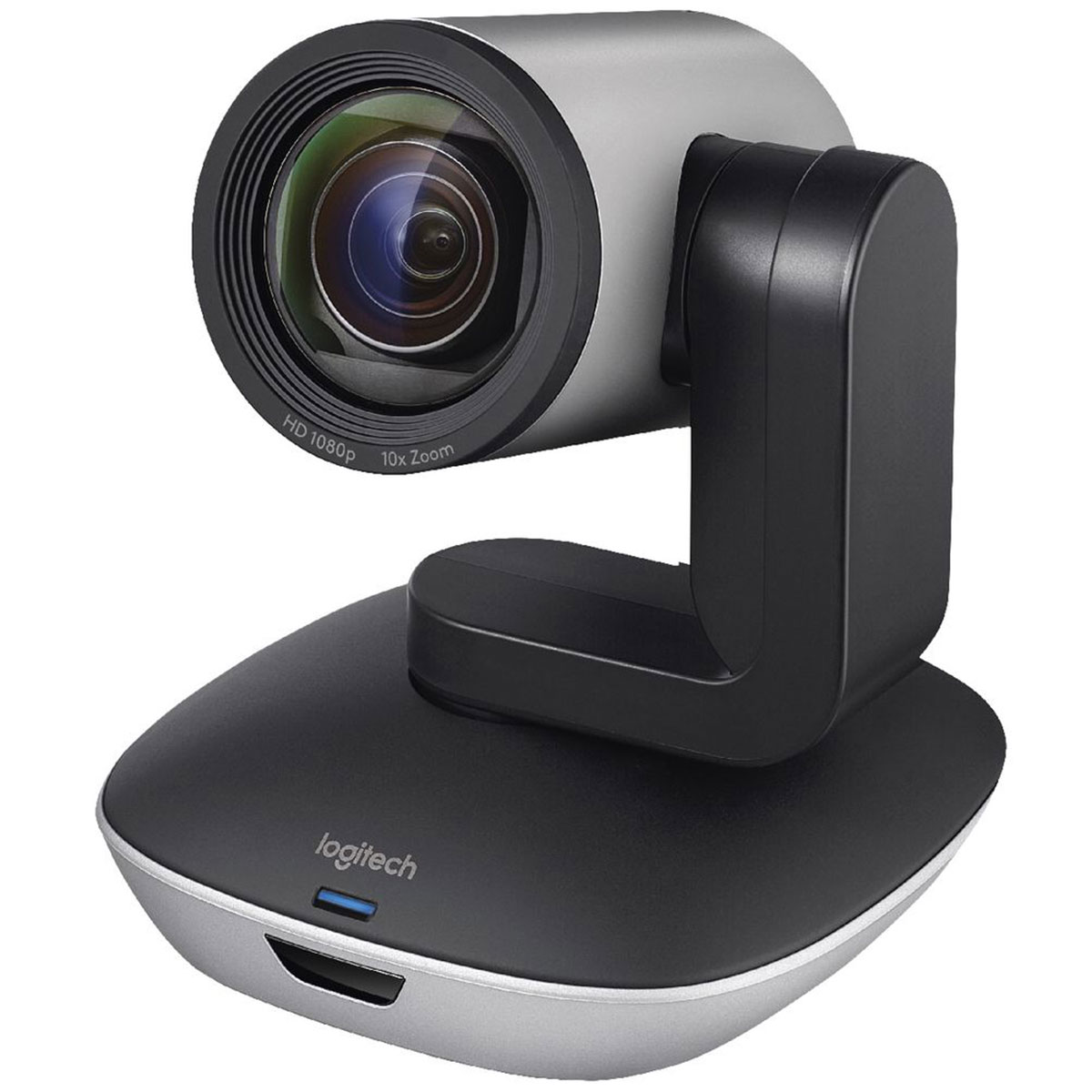

Camera

Smooth motorized pan, tilt and zoom controlled from remote or console
Pan +/- 90°
Tilt +35° / -45
10x lossless HD zoom
Field of View

• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2°

Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus
5 camera presets
Far-end control (PTZ) of ConferenceCam product (with supported services)
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread

Remote Control

Camera, speakerphone, and call control
5 camera presets
Docks on speakerphone
IR 8.5 m range
CR2032 battery (included)

Speakerphone

Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
5 camera presets for pan, tilt, and zoom settings
Kensington security slot

Microphones

Pickup Range: 6 m
Pickup range with expansion mics: 8.5 m
Four omnidirectional, beamforming microphones
Frequency response: 100Hz – 11KHz
Sensitivity: -28 dB +/-3dB
Distortion: <5% from 200Hz

Hub/ Cables / Power

Central Hub connects and powers all components
Under-table mounting adhesive included
One cable to camera: 5 m
One cable to speakerphone: 5 m
Extended cables available: 10 and 15 m
One USB cable for connection to PC/Mac: 2 m
AC Power adapter with regional plugs
Power cable: 3 m

Mount

Dual-purpose bracket works for both wall mounting and tabletop elevation

System Requirements

Windows® 7, 8.1 or 10
macOS 10.10 or later

DIMENSIONS

Camera

Height: 130 mm
Width: 170 mm
Depth: 138 mm
Weight: 585 g

Speakerphone

Height: 240 mm
Width: 65 mm
Depth: 240 mm
Weight: : 1223 g

Hub

Height: 94 mm
Width: 34 mm
Depth: 74 mm
Weight: 83 g

Remote

Height: 50 mm
Width: 120 mm
Depth: 12 mm
Weight: 51 g

Wall/Table Mount

Height: 210 mm
Width: 120 mm
Depth: 99 mm
Weight: 255 g

Expansion Mics (Optional)

Height: 83 mm
Width: 83 mm
Depth: 21 mm
Weight: 230 g
